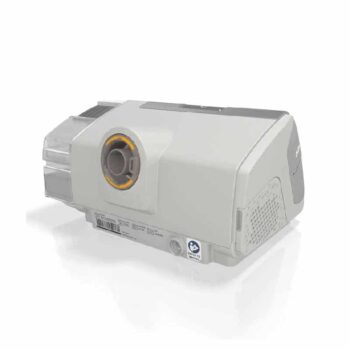

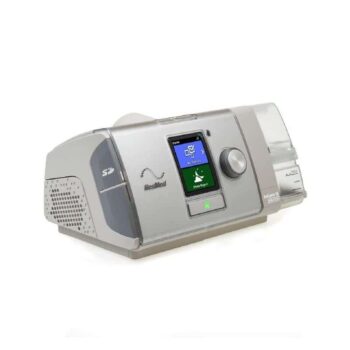

AirCurve 10 VAuto BiLevel Machine with HumidAir

AirCurve 10 VAuto BiLevel Machine with HumidAir

The AirCurve 10 VAuto BiLevel Machine with HumidAir is an Auto BiLevel device by ResMed. This device automatically adjusts the delivered inhalation and exhalation pressure according to the patient’s needs during the night.

Device is using the AutoSet Algorithm and Easy-Breathe waveform to treat individuals with challenging obstructive sleep apnea conditions by automatically determine the pressure needed for an effective treatment. In case therapy needs change, AirCurve 10 VAuto will adjust the pressure to your new needs immediately. In addition Easy-Breathe technology will imitate your breathe pattern in order to create a more familiar sleep experience, helping you to stay with your therapy.

ResMed AirCurve 10 VAuto BiLevel Machine with HumidAir features:

• Automatic Pressure Adjustments
• Pressure Relief Systems
• Vsync Technlogy
• Built-In Real Water Humidifier
• Full-Color LCD Display
• ClimateLineAir Heated Tube (Optional)

Automatic Pressure Adjustments

This high-quality cutting-edge BiPAP machine is equipped with the smart AutoSet Algorithm for bilevel therapy, in order to determine the air pressure required for inhalation and exhalation breath by breath. The automatic adjustments happening in real time as your therapy needs change. Adapting the air pressure exactly to your needs, provides extra comfort throughout therapy.

Pressure Relief Systems

Main target is to relief you from your sleep apnea problem, providing an restful sleep. AirCurve 10 VAuto has a set of features designed to relief air pressure, adding extra comfort to your therapy.

• Easy-Breathe Technology is available in S Mode, and when is used the machine imitates your breathe pattern providing a more familiar sleep experience.
• Ramp feature. When used in CPAP Mode, machine increases the air pressure slowly before reaching the preferable pressure. When used in VAuto, S, ST, T Modes the expiratory pressure increases from the starting EPAP to the preferable one.
• Machine also has Automatic Adjustments feature available only in Auto Mode. When in used AirCurve 10 VAuto, automatically indicates and adapts any air pressure needing.

IMPORTANT NOTE: TiControl function cannot be turned off. This device DOES NOT have a backup rate setting and is NOT a BiLevel ST device.

Vsync Technlogy

With Vsync Technology the device monitors mask leaks during the night and counterbalance the delivered air pressure to maintain therapy effectiveness.

Built-In Real Water Humidifier

This premium device is equipped with built-in heated humidifier. It is designed to add moisture to your therapy air, protecting you from drying out throughout therapy. This leads to less sleep disturbances, helping you to stick with your therapy and enjoy a recharging sleep every night.

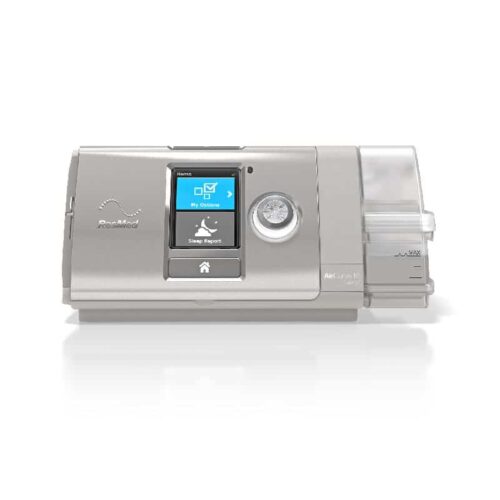

Full-Color LCD Display

AirCurve 10 VAuto features a big colored LCD display equipped with a light sensor in order to auto adjust the backlighting according to the room light. Using My Options menu, you can see your current settings and modify them to suit to your needs. From this menu you are in position to adjust:

• AutoRamp, detects automatically when user falls asleep in order to start therapy air pressure. You can also set the Ramp time manually, which is a time period of low pressure before therapy begins.
• Mask Fit, will notify you with a green smiling face or with a red frowning one, if the mask seal test is ok.
• Mask Type, where you set the type of CPAP mask you use for your treatment.
• AutoSet Response, you can select between Soft and Standard mode of air pressure adjustments
• Pressure Relief, decreases the pressure air during exhalation, making it easier to breath
• SmartStart, starts CPAP therapy as the machine detect breathing
• Run WarmUp, is pre-heating humidifier water before you start your therapy
• Humidity Level, can be set from zero and to 8 different scales

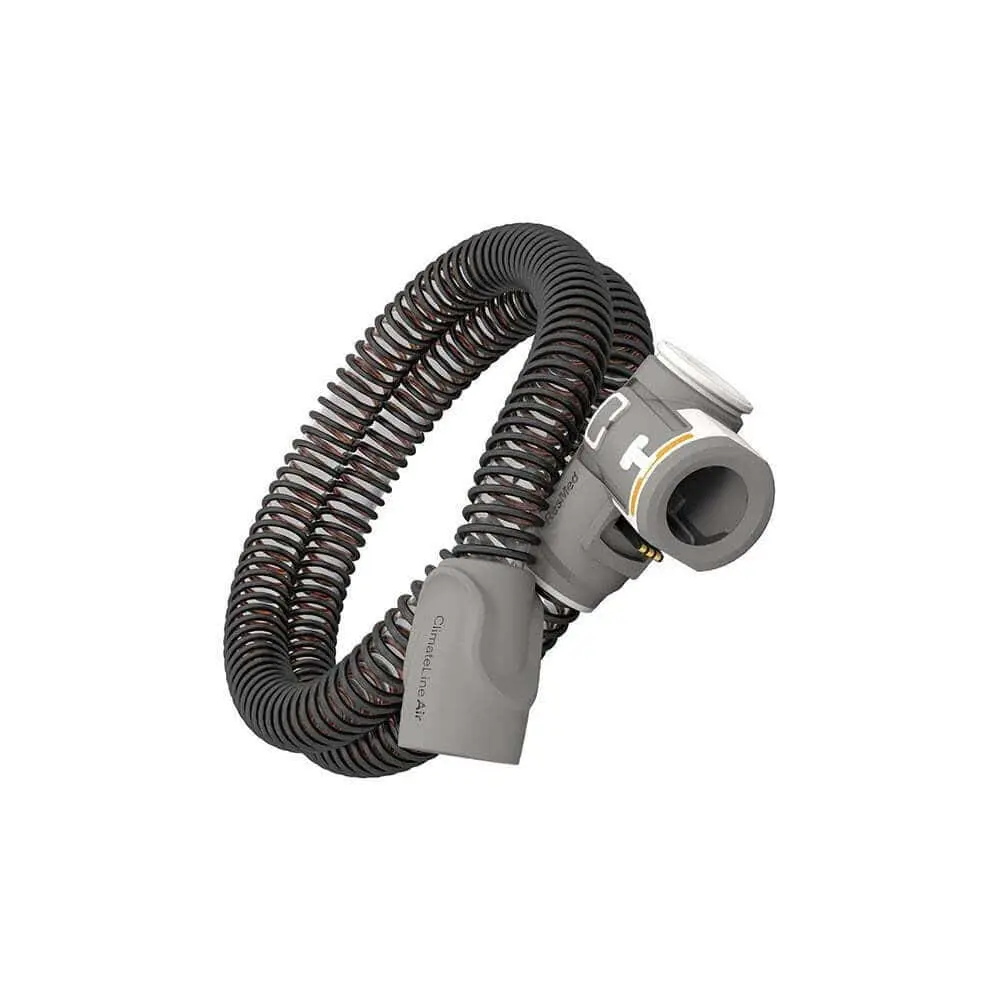

ClimateLineAir Heated Tube (Optional)

AirCurve 10 VAuto can accept ClimateLineAir Heated Tube in order to keep Humidified therapy air warm as it moves from the machine to your mask, minimizing the possibility of condensation and moisture inside the tube.

Specifications

What is included:

• AirCurve 10 VAuto BiLevel Machine
• Slimline Tubing
• Carry Case

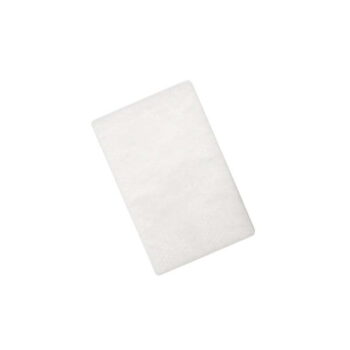

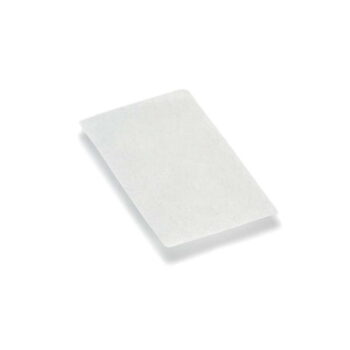

• Disposable Filter
• User Manual(EN)
• SD Memory Card
• Power Supply

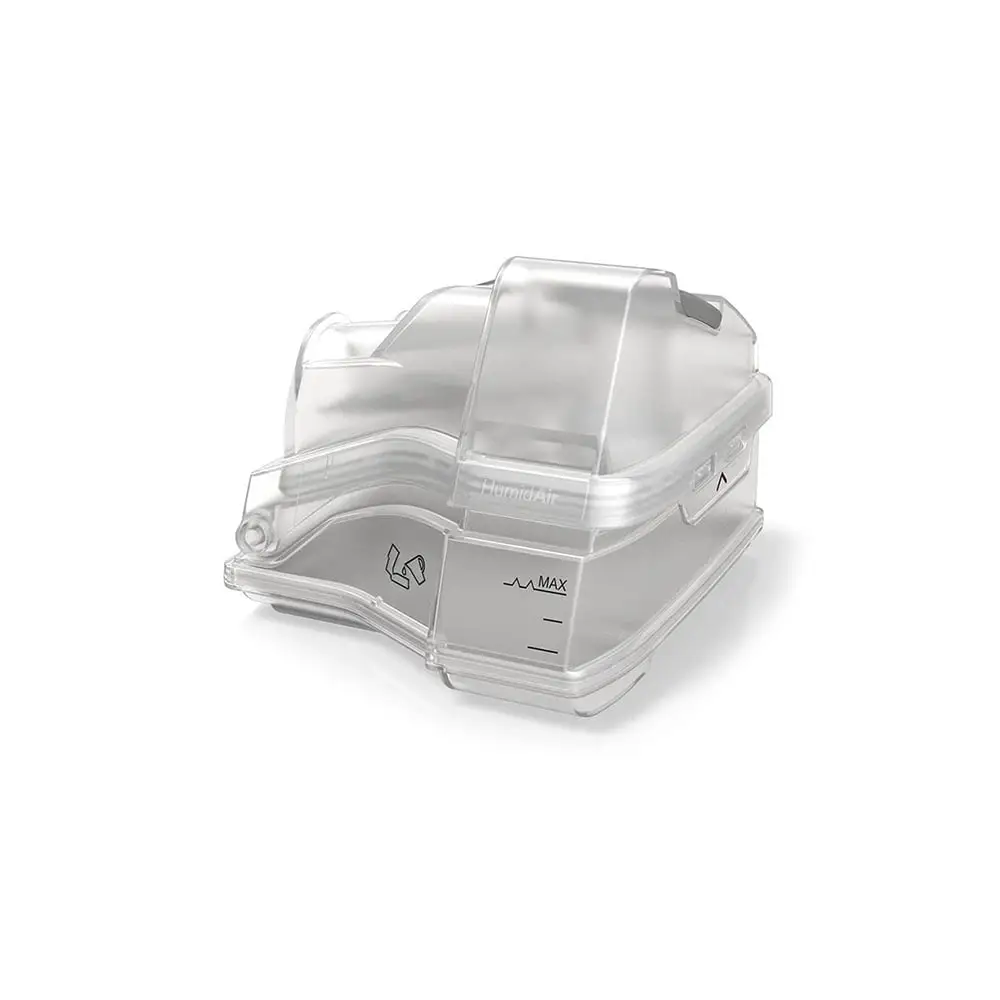

• HumidAir Water Chamber Cleanable

ResMed AirCurve 10 VAuto Technical Specifications

Modes	AUTO VPAP, Spontaneous, CPAP
Pressure Level	4 cmH2O to 25 cmH2O
Typical Power Consumption	53W
Dimensions	116mm x 255mm x 150mm
Sound	26.6 dBA ISO 17510-1:2007, 34.6 dBA ISO 17510-1:2007
Water Capacity (when included a water chamber)	380ml
Aircraft use	Meet the FAA regulations according to the requirements of RTca/DO-160, section 21 category M) for all phase
Supplement Oxygen	maximum 4 l/min
Wireless module(EU)	2G GSM
Class II, Type BF, ingress protection IP22	IEC 60601-1:2005 classification
AC input	100-240V, 50-60Hz Class II, DC output 24V 3.75A
FAA Approved	Yes
