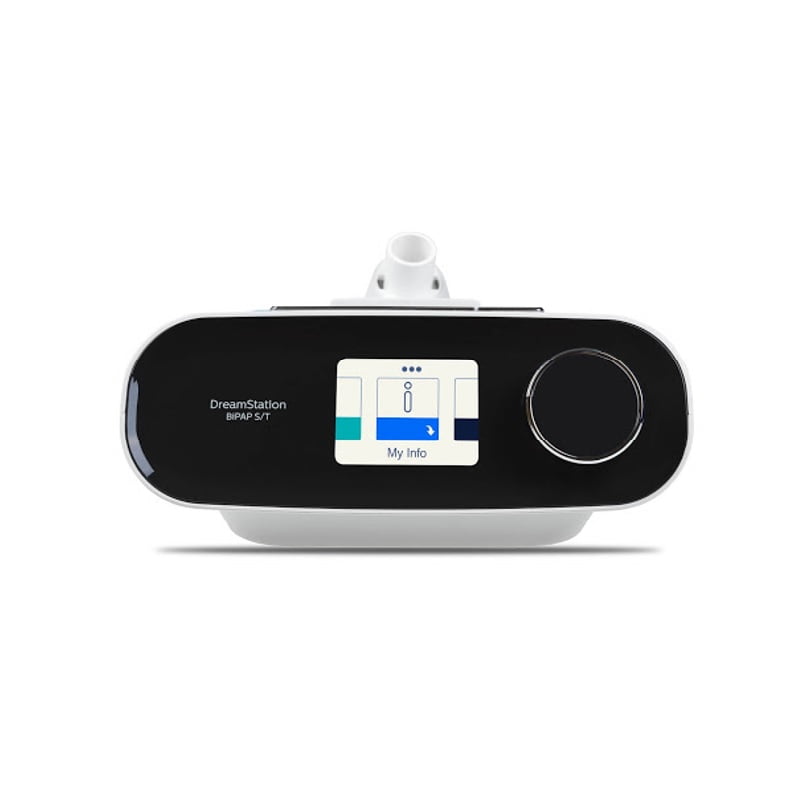

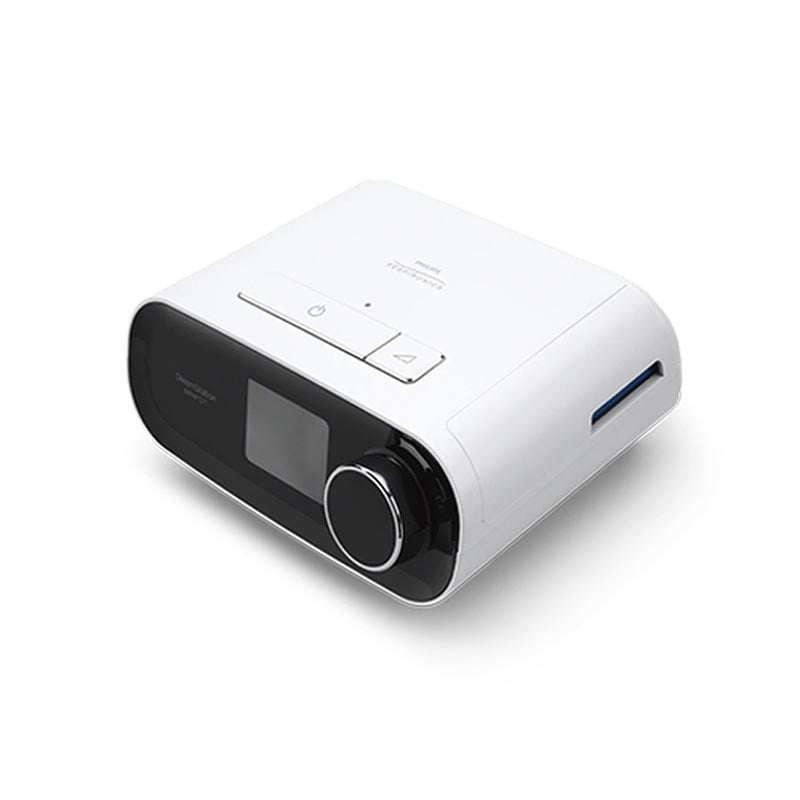

DreamStation BiPAP ST, Philips Respironics

Ideal for OSA and respiratory insufficiency patients with hypoventilation caused by restrictive thoracic disorders, obesity hypoventilation syndrome, central apnea, and COPD, DreamStation BiPAP ST is designed for both pediatric (>18 kg) and adult use. Philips Respironics BiPAP ST comes with smart algorithms which are made to adapt to patients therapy needs, encouraging long-term use.

DreamStation BiPAP S/T offers the added security of a Spontaneous Timed mode which will initiate a breath, after a set period of time, if no patient breath is detected.

Philips Respironics DreamStation BiPAP ST Machine features

• Spontaneous and Spontaneous Timed Trigger Modes
• Digital Auto-Trak Sensitivity
• Automated Airway Management (AAM)
• Two Step Filtration System
• Super quiet
• Sleek design
• Colored Screen
• Built in Bluetooth and SD card
• Advanced Humidification System (Optional)
• Heated Tube (Optional)

Spontaneous and Spontaneous Timed Trigger Modes

Coming with Spontaneous (S) and Spontaneous Timed Trigger (ST) Modes the machine can be set to automatically detect and adjust to patients needs, or to manually configure with prescribed values.

• • Spontaneous Mode (S) tracks breathing cycle and provides a 3 point pressure relief from inhalation to exhalation, providing a more comfortable natural breathing experience.
  • Spontaneous Timed Mode (ST) keep the main functionality as (S) mode -decrease pressure during exhalation and increase it during inhalation-  while adds Breathe Rate & Rise Time settings enabling the machine to initiate a breath, switching from exhalation to inhalation automatically and comfortably if a natural breath is not detected within a set time frame.

Digital Auto-Trak Sensitivity

With Digital Auto-Track Sensitivity algorithm, DreamStation BiPAP ST collects breathe by breathe information, understand and makes a copy of your  breathing cycle pattern. Digital Auto-Trak will automatically trigger a breath when needed, and is going to adjust therapy pressure if a leakage occurs in order to retain your airways open.

Automated Airway Management (AAM)

DreamStation BiPAP ST machine monitors patients upper airway in any ventilation mode and automatically reacts providing the lowest bi-level pressures to treat the patient’s ventilation needs. With this feature user does not need to fight against the machine during exhalation, enjoining a more comfort therapy.

Two Step Filtration System

Machine comes with a two step filtration system. These Ultra fine filters provides additional filtration and blocks even the smallest particles.

Super quiet

When it comes to sleep apnea and sleep disorders therapy, the main target is to provide a restful sleep to the patient. DreamStation BiPAP ST machine is a super quiet machine, providing a noise free environment for you and your bed partner. Enjoy a peaceful sleep and recharge your batteries with Philips Respironics BiPAP ST.

Sleek design

Your machine is going to be always next to you, so Philips Respironics took that into account and designed a perfect BiPAP ST device with a sleek design to decorate your bed side table.

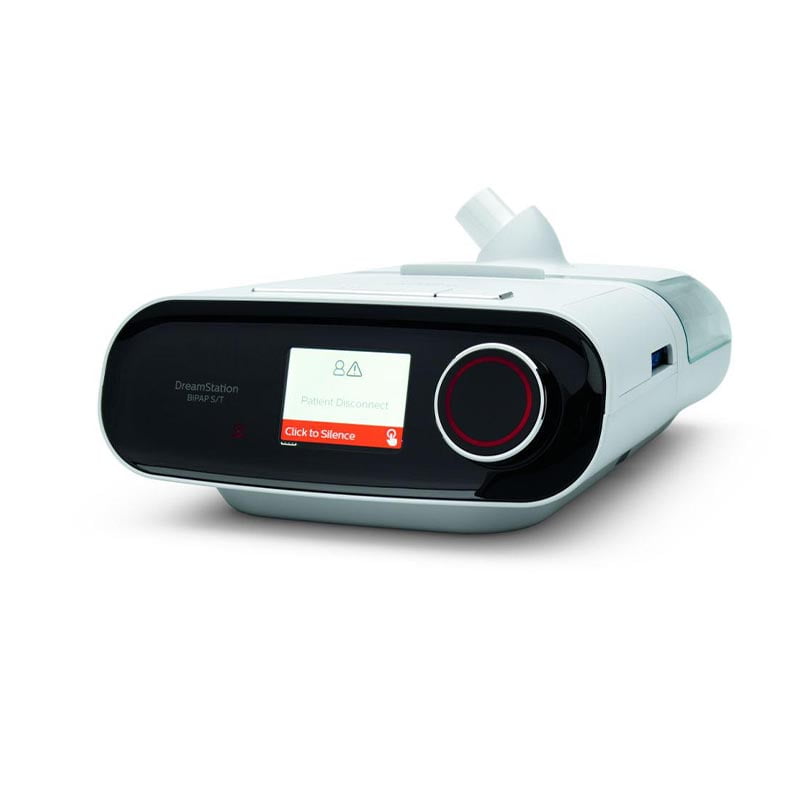

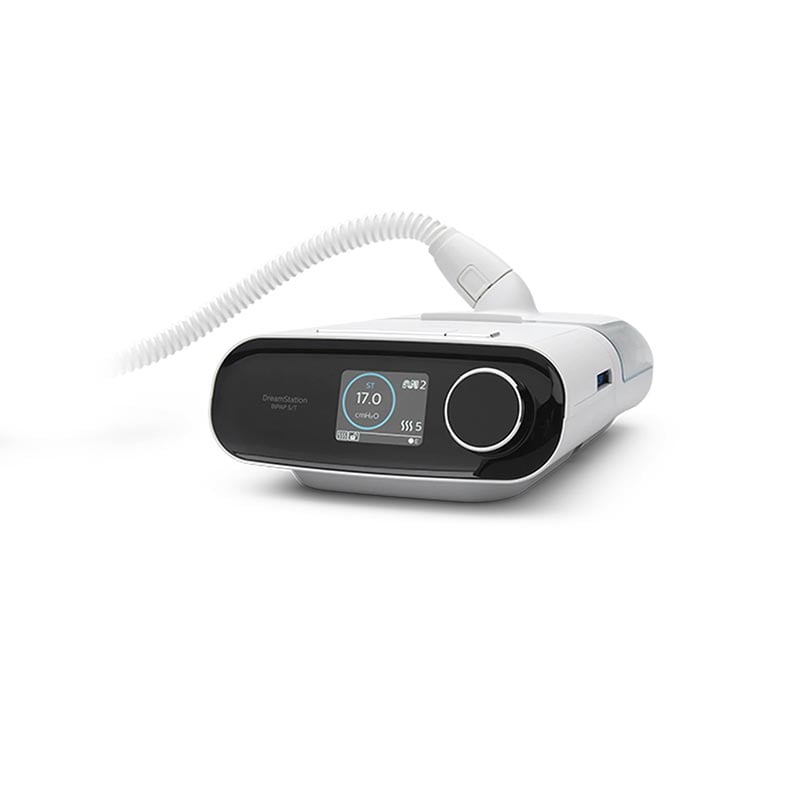

Colored Screen

You can easily set up your DreamStation BiPAP ST machine through its colored screen, via a very user friendly environment. On the same screen you will get your daily reports and feedback about your therapy, AHI, leak events and etc.

Built in Bluetooth and SD card

Machine comes with a built in Bluetooth in order to automatically connect with DreamMapper. DreamMapper app available for both Android and Apple devices, monitors all the critical parameters of your therapy, like AHI, leak, and total therapy time. If you do not have a compatible smart device, you can instead insert an SD Card, which can be used to transfer data to a computer and connect to the DreamMapper website. DreamMapper is not available in all countries.

Advanced Humidification System (Optional)

DreamStation Heated Humidifier connects directly to DreamStation BiPAP ST machine looks like one device and comes with dry box technology securing that no water will pass from the humidifier to the machine. The humidifier adds humidity to your therapy air eliminating any negative therapy side effects like dry nostrils and mouth, adding extra comfort to your therapy. The heat and moisture level can be set either to Standard (fixed levels) or to Adaptive (auto-adjust heat and moisture levels).

Heated Tube (Optional)

With DreamStation Heated Tube you are going to eliminate any Rainout effects caused in CPAP hose from the difference between therapy air temperature and room temperature. In case the humidifier is not in use, the DreamStation Heated Tube will not heat either, and will work as a standard CPAP hose.

Specifications

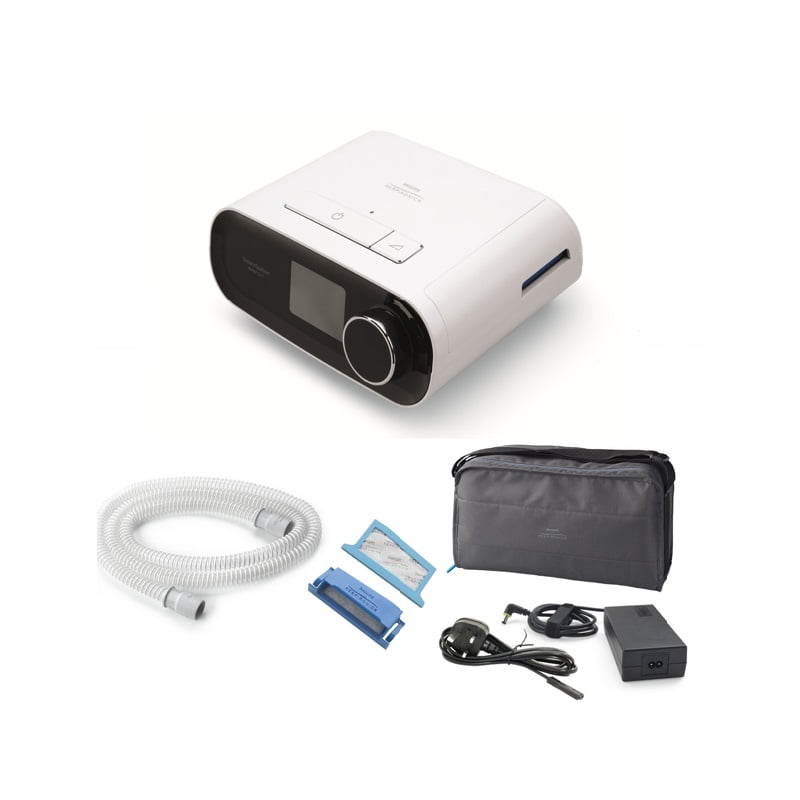

What is included:

• DreamStation BiPAP S/T Machine
• 15mm Air Tube
• Air Filter
• SD card
• DreamStation 80W Power Supply
• Power Cord
• Carrying Case
• DreamStation Heated Humidifier (optional)
• User Manual (EN)

DreamStation BiPAP ST machine Technical Specs:

Modes	CPAP, S, S/T
Pressure range
EPAP 4-30 cm
IPAP 4-30 cm
I-Time	0.5-3.0 sec, off
Breath rate	1-30 BPM, off
Rise time	1-3
Flex pressure relief	1 to 3
Humidification	Heated humidification:  fixed, adaptive
Data storage capacity (minimum)	SD card:  6 months, On-board:  3 months
Altitude compensation	Automatic
Filters	Reusable pollen; disposable ultra-fine
Device controls	LCD, control dial/push button
Modem Compatibility	Standard (Optional Cellular Modem or Wi-Fi Accessory)
Built-in Bluetooth Connectivity	Standard
Warranty	2 years
Dimensions	15.7 x 19.3 x 8.4 cm (w/o humidifier)
Dimensions (with Humidifier)	29.7 x 19.3 x 8.4 cm
Weight	1.33 kg (w/o humidifier)
Weight (with Humidifier)	1.98 kg
Electrical requirements	100 – 240 VAC, 50/60 Hz, 2.0-1.0 A
