The Nox A1s Portable Polysomnography Machine, Nox Medical is presented with refreshed product guidance for CPAP therapy users who want clear compatibility, comfort and replacement information before ordering.

The Nox A1s PSG system is a true Hospital-to-Home sleep diagnostic system with a wireless design and revolutionary versatility. The new Nox A1s system is a more evolved solution, able to perform level I, level II, and level III sleep studies to test and diagnose more diverse patient populations.

Product includes:

• With the Nox A1s the clinician has all the necessary channels satisfying the AASM criteria for in-lab PSG studies.
• Built-in sensors for snoring, EKG, EMG & EEG.
• Refined Nox RIP technology with 200Hz sampling frequency can be used as a primary flow measurement.
• The improved Bluetooth platform, BLE 5.0, facilitates lower energy consumption and extends the battery life for multiple night studies.
• Cutting Edge analysis in Noxturnal Software empowered by artificial intelligence.
• Diagnostic System A1s designed for adult and pediatric patients. The A1s are intended to be used within the pediatric age group from 2 years and up. The A1s capability to add channels along with the child being studied in their bed allows a customized personal approach for a successful pediatric sleep study.
• Dual-purpose capability to perform in-lab and at-home sleep testing.
• Small and low-profile PSG recorder designed with patient comfort in mind.
• High-quality signals both in Type I in-lab setting and Type II home unattended setting.
• Complete PSG system with integrated RIP and PTAF that fits in the palm of your hand.
• Built-in redundancy and advancements in technology integration for low failure rates.
• Nox A1s can be used for patients greater than two years of age.

Package Including:

• A1s Recorder Machine
• Nonin 3150 oximeter
• Nox Abdomen Cable
• Nox RIP belts Disposable, Medium – 2 sets
• Nox Cannula with Filter – 2 pieces
• Nox Snap-on Double Lead Black 148/150 cm (58/60 in)
• Nox A1 EEG Head Cable 90 cm (35 in), Adult
• Nox A1 EEG 5 Lead Gold Electrode Cable – 2 pieces
• Nox Snap-on Double Lead Orange 50/100 cm (20/40 in)
• Nox Snap-on Double Lead Grey 148/150 cm (58/60 in)
• Nox Snap-on Double Lead Black 148/150 cm (58/60 in)
• USB-C Cable
• Nox Carry Case
• Nox Lid key
• Noxturnal CD
• AA Battery – 2 units
• AAA Battery – 2 units

modern Technology:

High-quality signals for Type I in-lab setting.	Pressure from nasal and mask cannula.
10 unipolar inputs for EOG and EEG.	Position and activity from the built-in 3D acceleration sensor.
3 unipolar EMG sub-mental inputs.	Integrated Nox RIP Technology (calibrated).
4 configurable bipolar inputs (Thermistor, ECG, EMG).	Pulse, SpO2, and pleth waveform from a Bluetooth® enabled oximeter.
Sound from a built-in microphone.	Minimum of 10 hours recording time with a disposable alkaline battery.

Technical specifications:

Signal Specifications:
Available Signals:	Thorax and Abdomen RIP, Nasal pressure/Mask pressure, Snore Signal, Audio and snoring channel, 13 unipolar channels, two bipolar channels, Position, Activity, Sp02, pulse, plethysmography, and more.

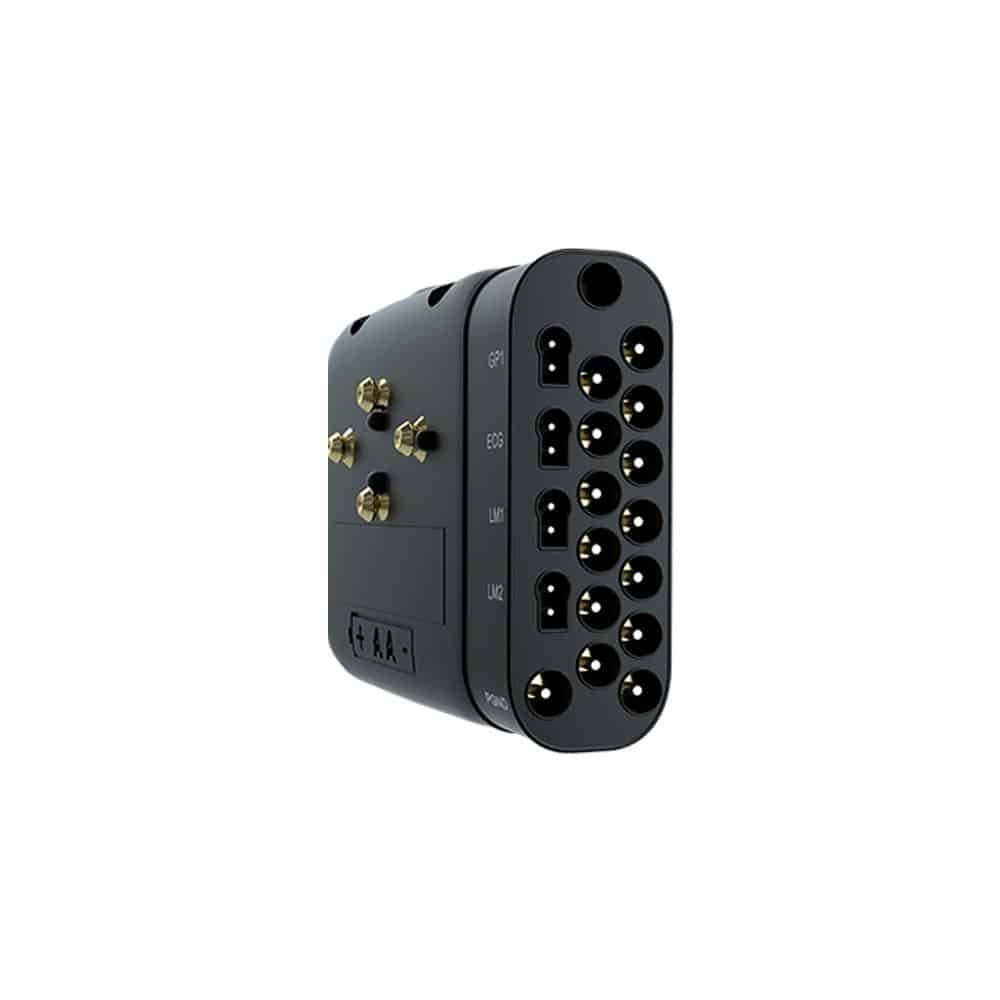

Unipolar Channels:	13x Unipolar Channels – Touch proof connector DIN 42-802, ±3.2mV input range < 1 µVrms noise, 512 kHz sampling rate
Bipolar Channels:	4x Bipolar Channels Keyhole connector, ±1024mV input range, < 3 µVrms noise, 512 kHz sampling rate, 24-bit ADC
Flow/Pressure Signal:	2x RIP Channels Thorax and abdomen respiratory inductance plethysmography, 200 Hz Sampling, 1x Flow/Pressure Channel -5cmH20 to +50cmH2O input pressure range, DC-80 Hz, <1 mmH2O noise
Activity/Position Signals:	Internal 3 axes, ±2 g
Sound Signals:	1MHz sampling, internal 8 kHz bandwidth
Wireless Interface:	Bluetooth® V5.0 Low Energy – wireless interface for external devices
Ambient Light:	1 Hz
Performance Specifications:
Storage Capacity:	4 GB internal memory
Recording Time:	20-30 hours with a new lithium battery
PC Communications:	USB 2.0 hi-speed
Physical Specifications:
Power Source:	One 1.5V AA battery during recording; Host PC USB during data download
Battery Type:	Alkaline primary, Lithium primary, nickel-metal hydride rechargeable (NiMH)
Battery Cover:	Tamper-proof and locked
Device Dimension:	82 mm W x 62 mm H x 26 mm D
Weight:	92 g (120g with battery)

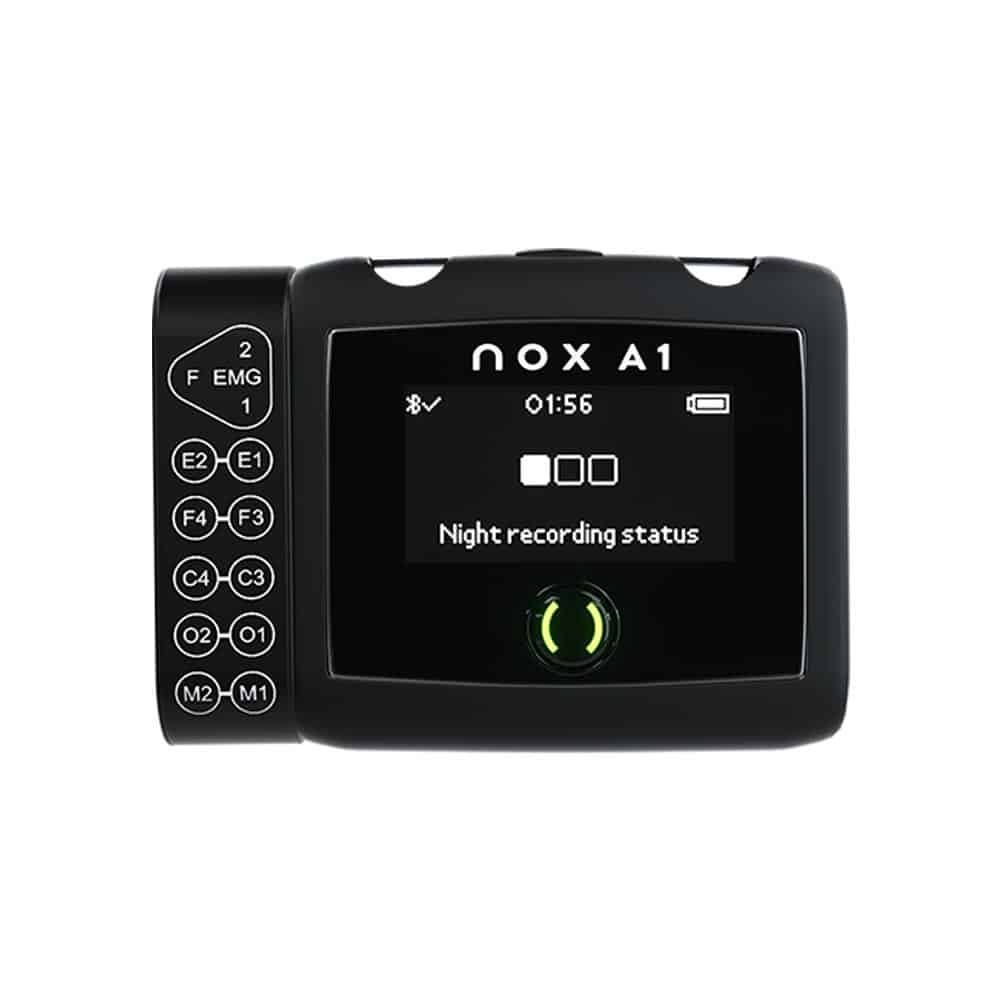

Display:	OLED-dimensions 19 x 35 mm (0.75 x 1.38 in), resolution 128 x 64 dots
USB 2.0 Connection:	USB Type C

PC Requirements:

Minimum PC Requirements:

Windows 8 and higher Processor: X64 based Intel or AMD, 1.7 GHz or faster 2GB RAM, 4 GB of free disk space Resolution: 1024 x 768 or higher
