Nox T3s Sleep Diagnostic Machine, Nox Medical

10278,00 €

The Nox T3s Sleep Diagnostic Machine, Nox Medical is presented with refreshed product guidance for CPAP therapy users who want clear compatibility, comfort and replacement information before ordering.

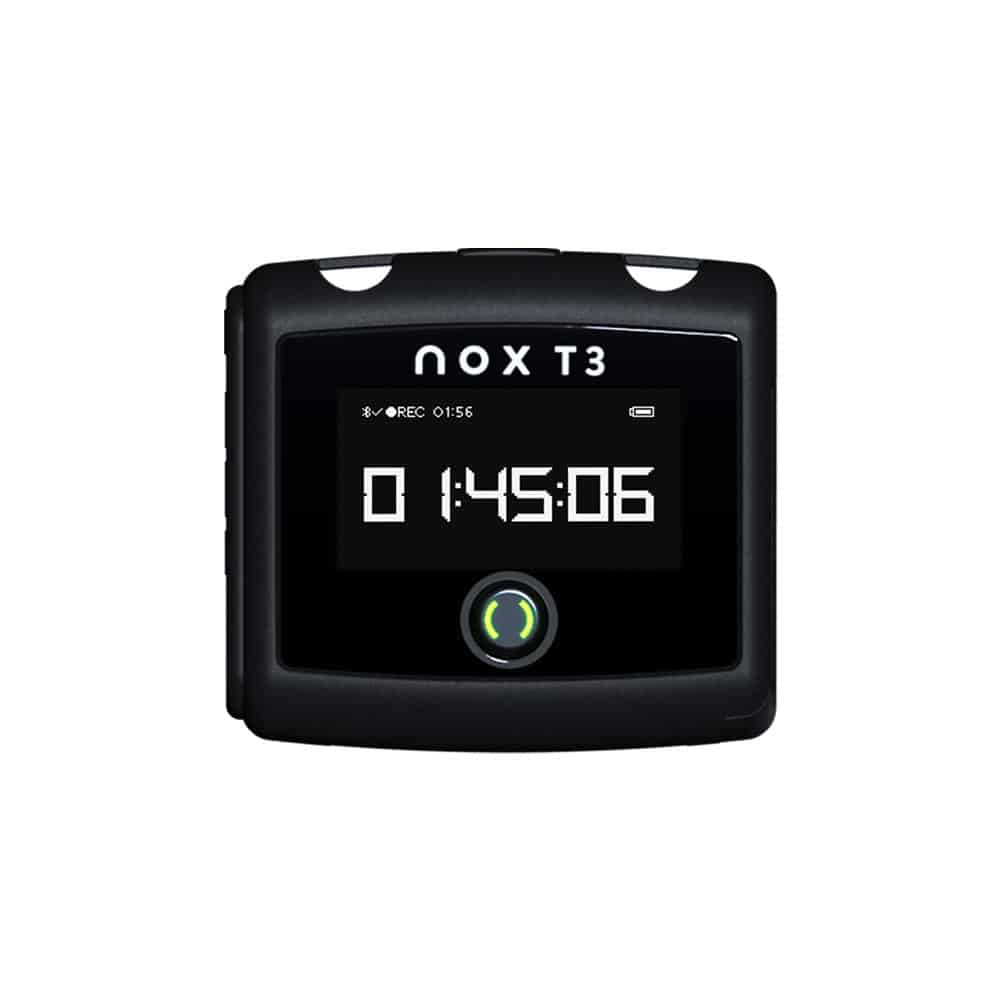

We are introducing the next generation of sleep testing devices, the Nox T3s, a small and low-profile diagnostic TYPE III machine for Sleep Testing.



Only 1 left in stock

SKU: 511012 Category: Brand:

Nox T3s Sleep Diagnostic Machine, Nox Medical

The Nox T3s Sleep Diagnostic Machine, Nox Medical is presented with refreshed product guidance for CPAP therapy users who want clear compatibility, comfort and replacement information before ordering.

The Nox T3s is a new, practical, powerful home sleep-testing diagnostic machine built to keep the patient in mind. The focus is on patient comfort, as well as the size and weight of the device to be ergonomic.

Product includes:

  • Nox BodySleep sleeps time estimation from HST using breathing parameters utilizing Artificial Intelligence, intended to differentiate 30-second epochs into the REM and NREM sleep states and Wakefulness.
  • Built-in sensors for snoring, EKG, EMG & EEG.
  • Refined Nox RIP technology with 200Hz sampling frequency can be used as a primary flow measurement.
  • The improved Bluetooth platform, BLE 5.0, facilitates lower energy consumption and extends the battery life for multiple night studies.
  • Cutting Edge analysis in Noxturnal Software empowered by artificial intelligence.
  • Diagnostic System T3s designed for adult and pediatric patients. The T3s are intended to be used within the pediatric age group from 2 years and up. The T3s capability to add channels along with the child being studied in their bed allows a customized personal approach for a successful pediatric sleep study.

Package Including:

  • T3s Recorder Machine
  • Nonin 3150 oximeter
  • Nox Abdomen Cable
  • Nox RIP belts Disposable, Medium – 2 sets
  • Nox Cannula with Filter – 2 pieces
  • USB-C Cable
  • Nox Carry Case
  • Nox Lid key
  • Noxturnal CD
  • AA Battery – 2 units
  • AAA Battery – 2 units

Technical specifications:

Signal Specifications:
Available Signals: Thorax and Abdomen RIP, Nasal pressure/Mask pressure, Snore Signal, Audio and snoring channel, two bipolar channels, Position, Activity, SpO2, pulse, plethysmography, and more.
Bipolar Channels: Touch-proof connector 1 mm keyhole connector, ±1024 mVp-p input range AC, <3 μV RMS noise, 32-bit resolution
Flow/Pressure Signal ±100 cmH2O input pressure range, DC-80Hz, 200 Hz sampling frequency, <1 mmH2O noise
Activity/Position Signals Internal 3 axis, ±2 g
Sound Signals 8kHz sampling rate, 3.5kHz bandwidth, 16-bit ADC
Wireless Interface Bluetooth® V5.0 Low Energy – wireless interface for external devices
Performance Specifications:
Storage Capacity 4 GB internal memory
Recording Time 24 hours with 1x AA Battery (new Lithium battery)
PC Communications USB 2.0 hi-speed
Physical Specifications:
Power Source One 1.5V AA battery during recording; Host PC USB during data download
Battery Type Alkaline primary, Lithium primary, nickel-metal hydride rechargeable (NiMH)
Battery Cover Tamper-proof and locked
Device Dimension 6.80cm W x 6.20cm H x 2.590cm D
Weight 68.04gr ± 0.4 gr without battery
Display Type OLED—Dimensions 0.75 in x 1.38 in, resolution 128 x 64 dots
USB 2.0 Connection USB-Mini type C

PC Requirements:

Minimum PC Requirements: Windows 8 and higher Processor: X64 based Intel or AMD, 1.7 GHz or faster 2GB RAM, 4 GB of free disk space Resolution: 1024 x 768 or higher
